Battery motor set, incl. emitter and charger ( 1 ST ) 13 Nm (max. 29 kg) | 40 mm, 8-Kant | Motorset inkl. 1-Kanal Sender + Ladegerät + Lager

Product number: BUNDLE3

Automate your roller shutters retrospectively with this motor set!

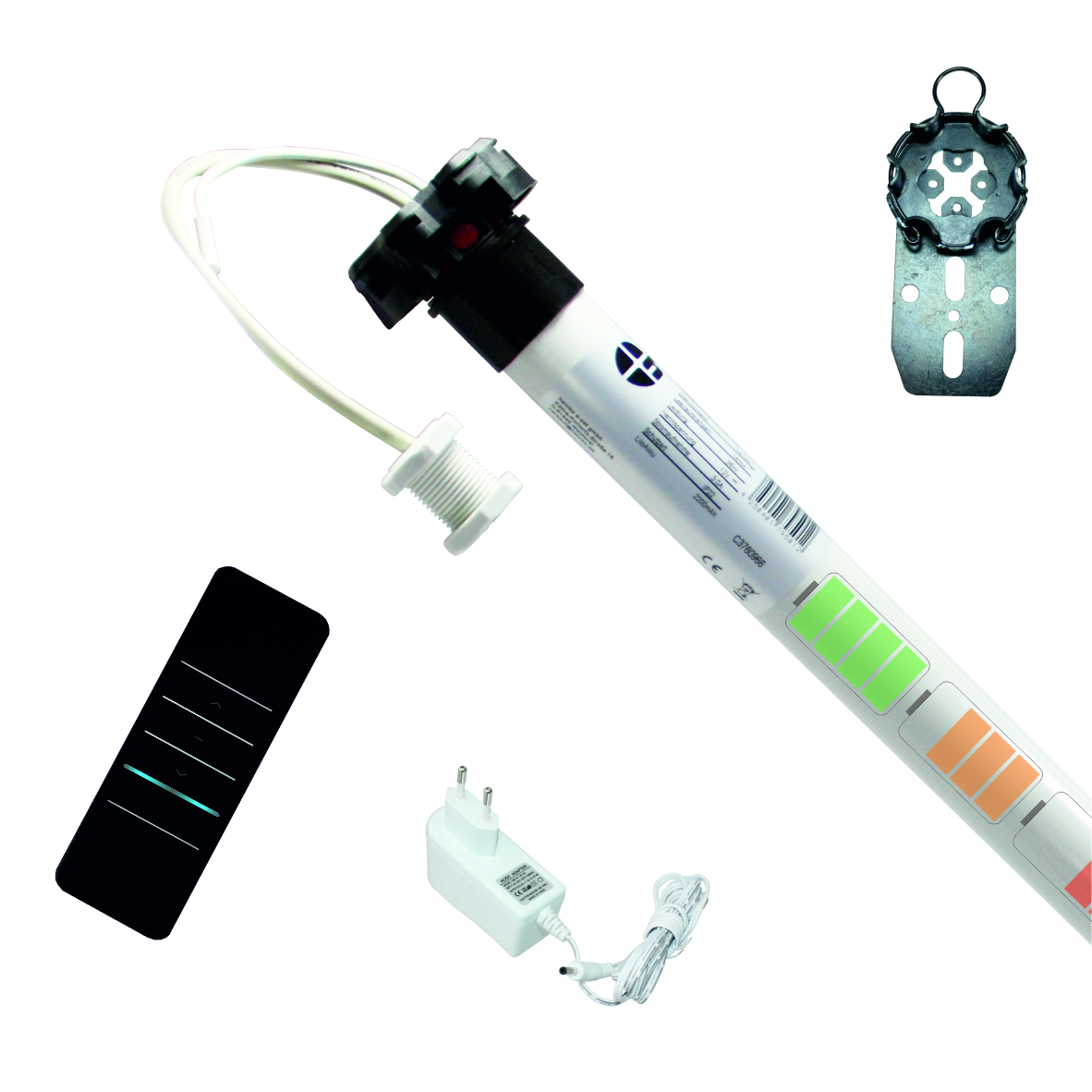

Set consisting of:
Battery motor for 40 mm octagonal shaft
Motor length without bearings: 655 mm
Motor diameter: 35 mm
Nominal torque: 13 Nm
Max. Load: 29 kg
Idle speed: 14 min-1
Wrench size: SW40
Ø number of cycles (cycles / load / travel): 400/10 kg / 1 m
Radio protocol G2

Handheld radio transmitter (1-channel)
Including battery and wall bracket

Charger for battery motor
2 m cable length
12.6V
With barrel connector

226,06 €
Ready for shipping

Description


With a pulling force of 13 Nm (approx. 29 kg maximum weight), almost all conventional roller shutters can be retrofitted without any problems, which is a nicer and usually stronger solution to conventional electric belt winders.

The quick assembly is facilitated by a clip-on motor head (also suitable for many Somfy bearings). Alternatively, the clip head can be changed to a motor head with square mount with an adapter in the event that an existing bearing is to be reused in the old building. The new HRSDC series from heicko enables a charge-free use of tubular motors for several months, thanks to the integrated 3200 mAh lithium-ion batteries.

If the battery is almost empty, the LED display that can be installed in the roller shutter box lights up red and signals that charging has to be carried out. After a few hours the batteries are full again and the LED display lights up green. In the idle state, however, nothing lights up, so there is no annoying light, e.g. in bedrooms.
